D-Sub (VGA)
D-Sub (VGA) Connector｜Classic Analog Video Transmission Interface
Product Overview
D-Sub (D-Subminiature) is a widely used interface for transmitting analog video signals. The most representative application is VGA (Video Graphics Array), commonly found in computer graphics cards, monitors, and projectors. Characterized by its D-shaped shell and multi-pin design, the connector provides a stable mechanical structure and reliable contact performance.
Common Types and Applications
| Type | Specification | Application |
|---|---|---|

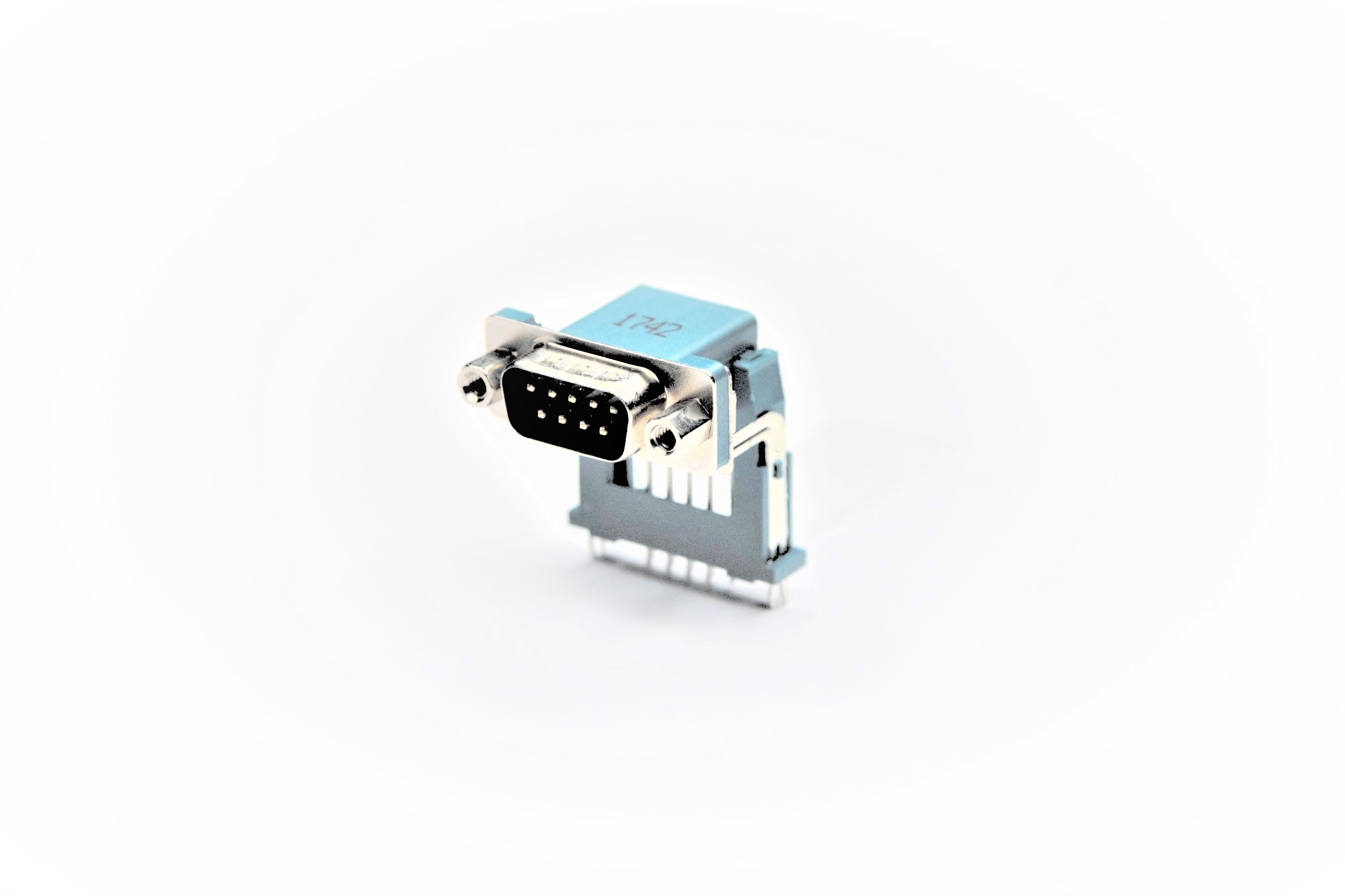

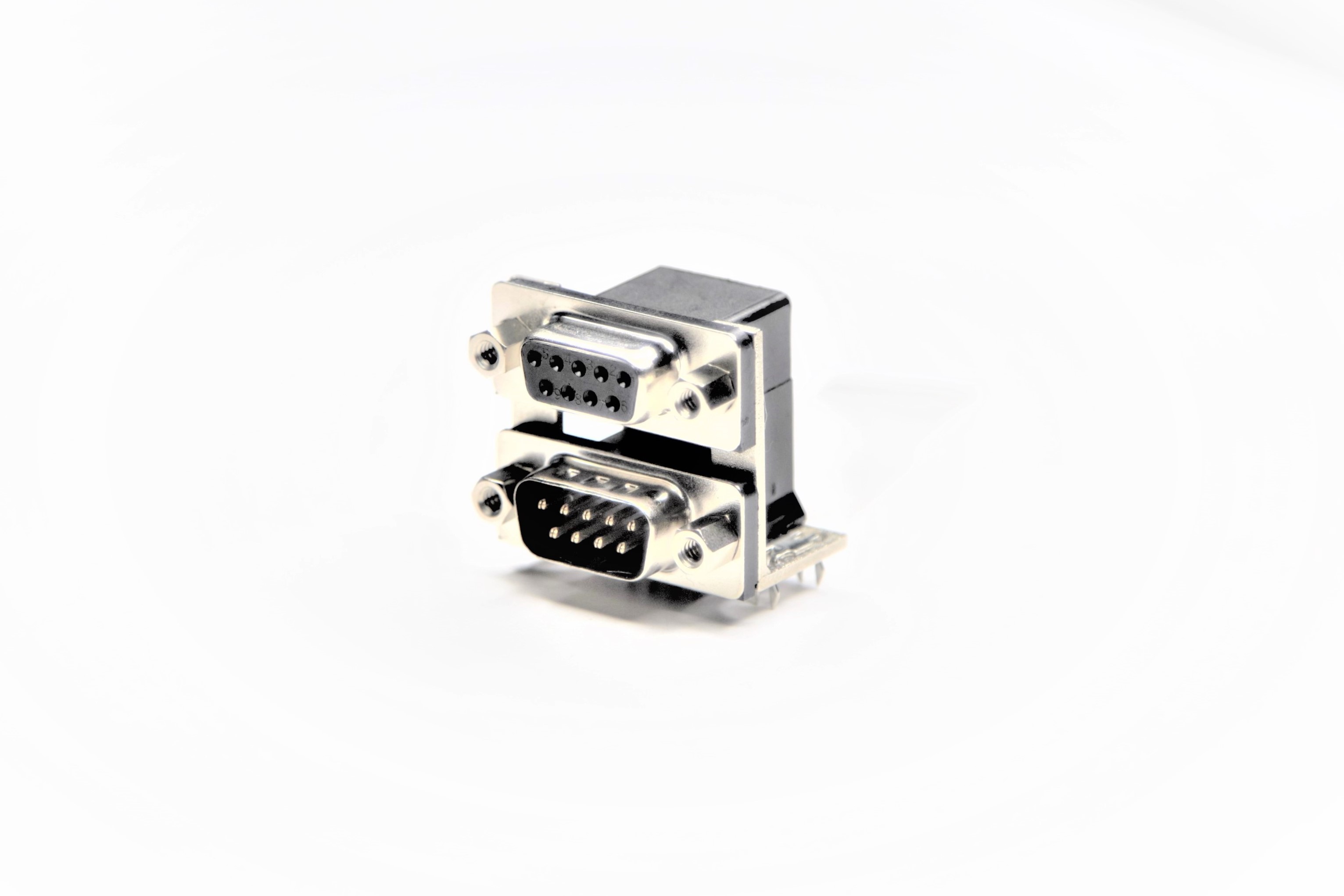

| 9 Pin (DE-9) | Compact, often used for serial communication | Industrial control, legacy computer interfaces |

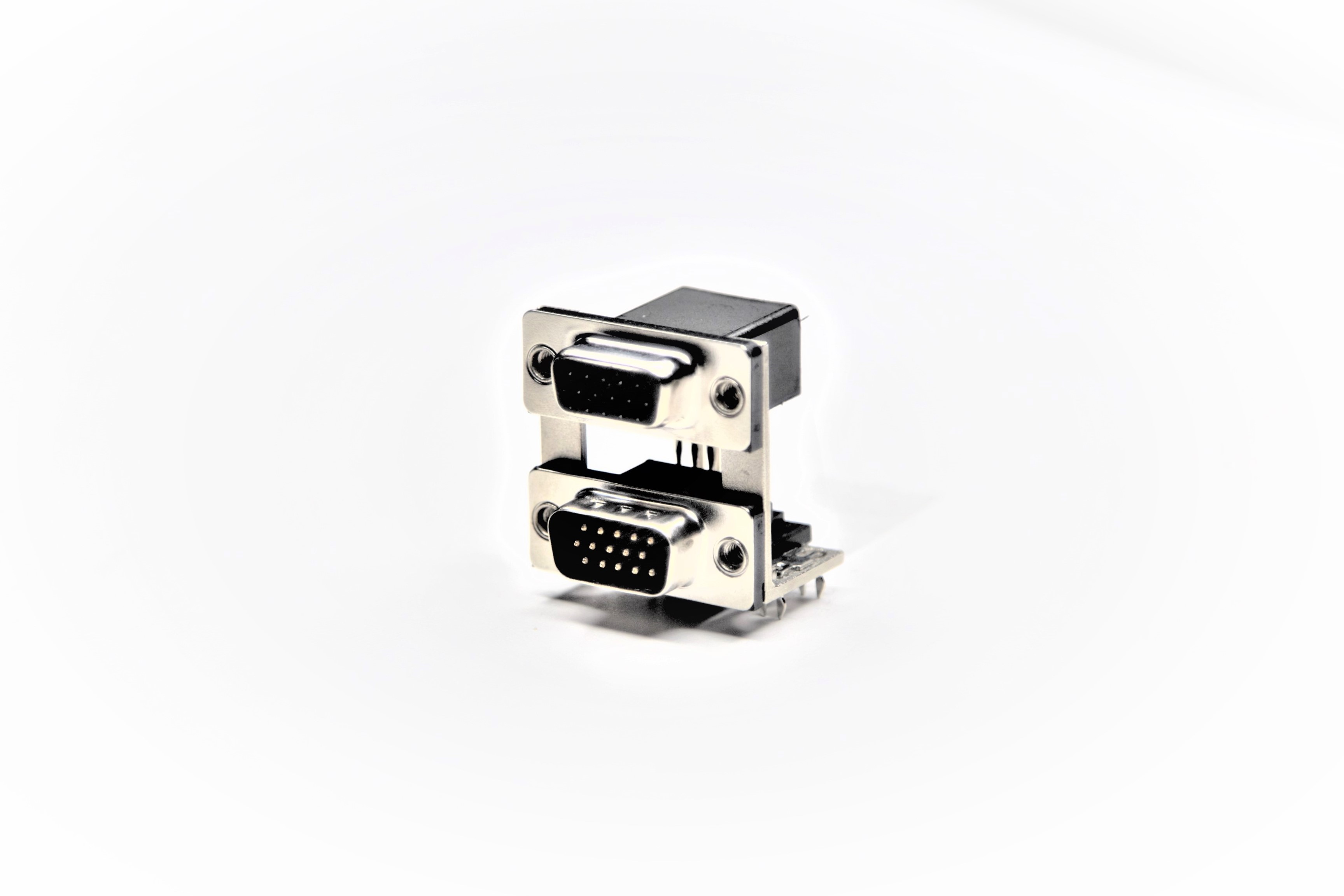

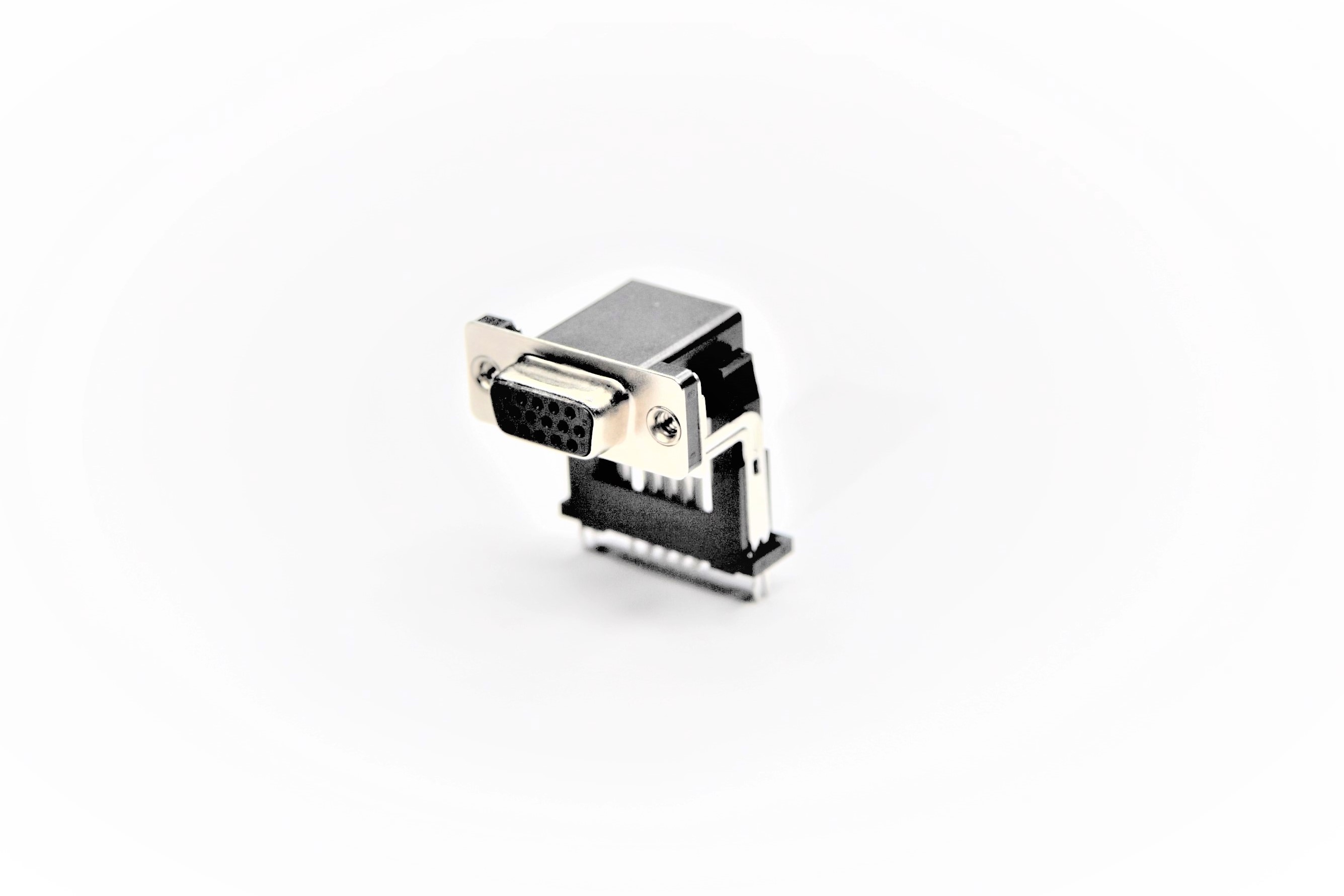

| 15 Pin (DE-15/VGA) | Most common, three-row pin layout | Computer monitors, projectors, graphics cards |

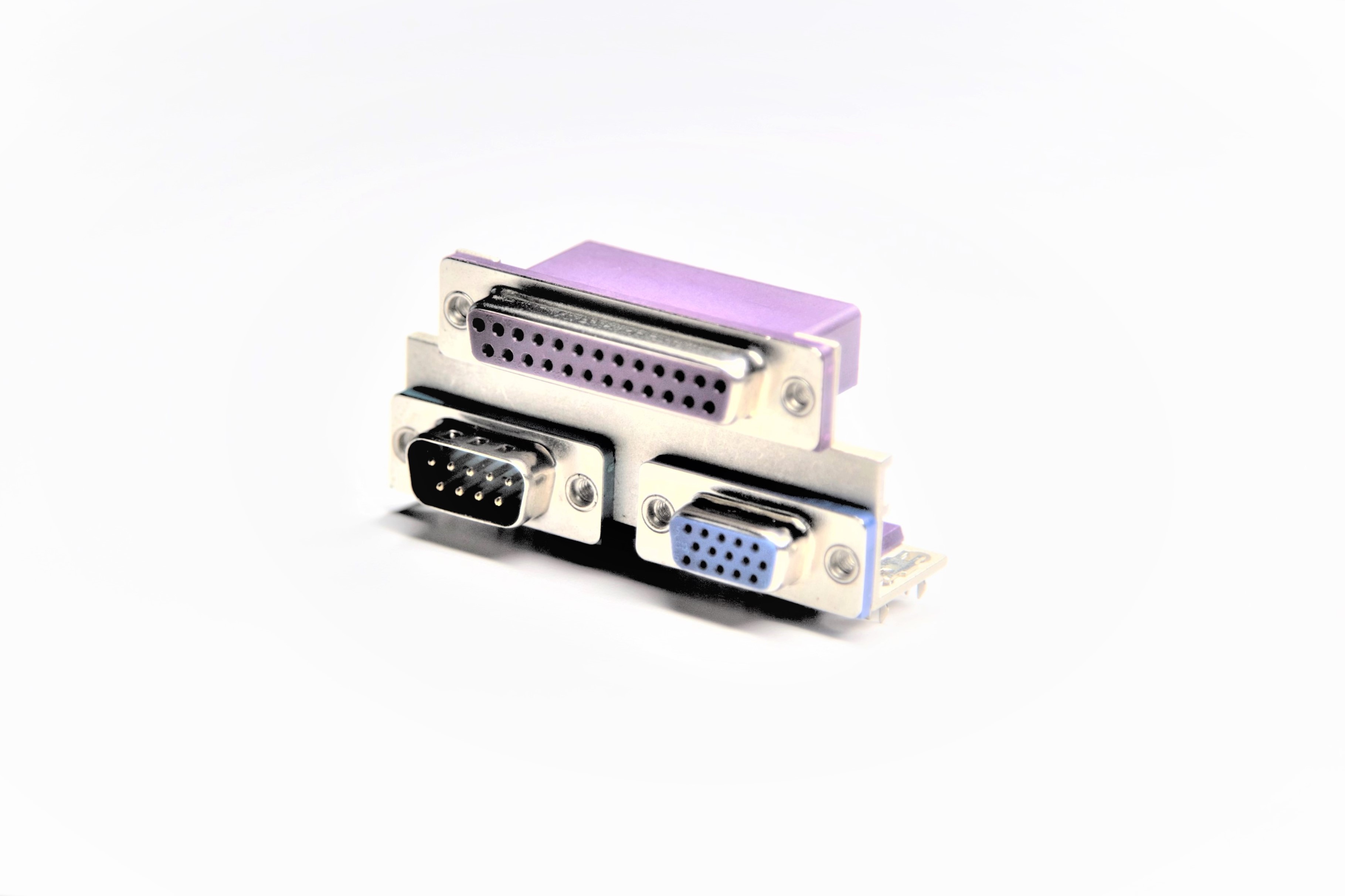

| 25 Pin (DB-25) | Larger, multi-purpose | Printers, industrial equipment, communication interfaces |

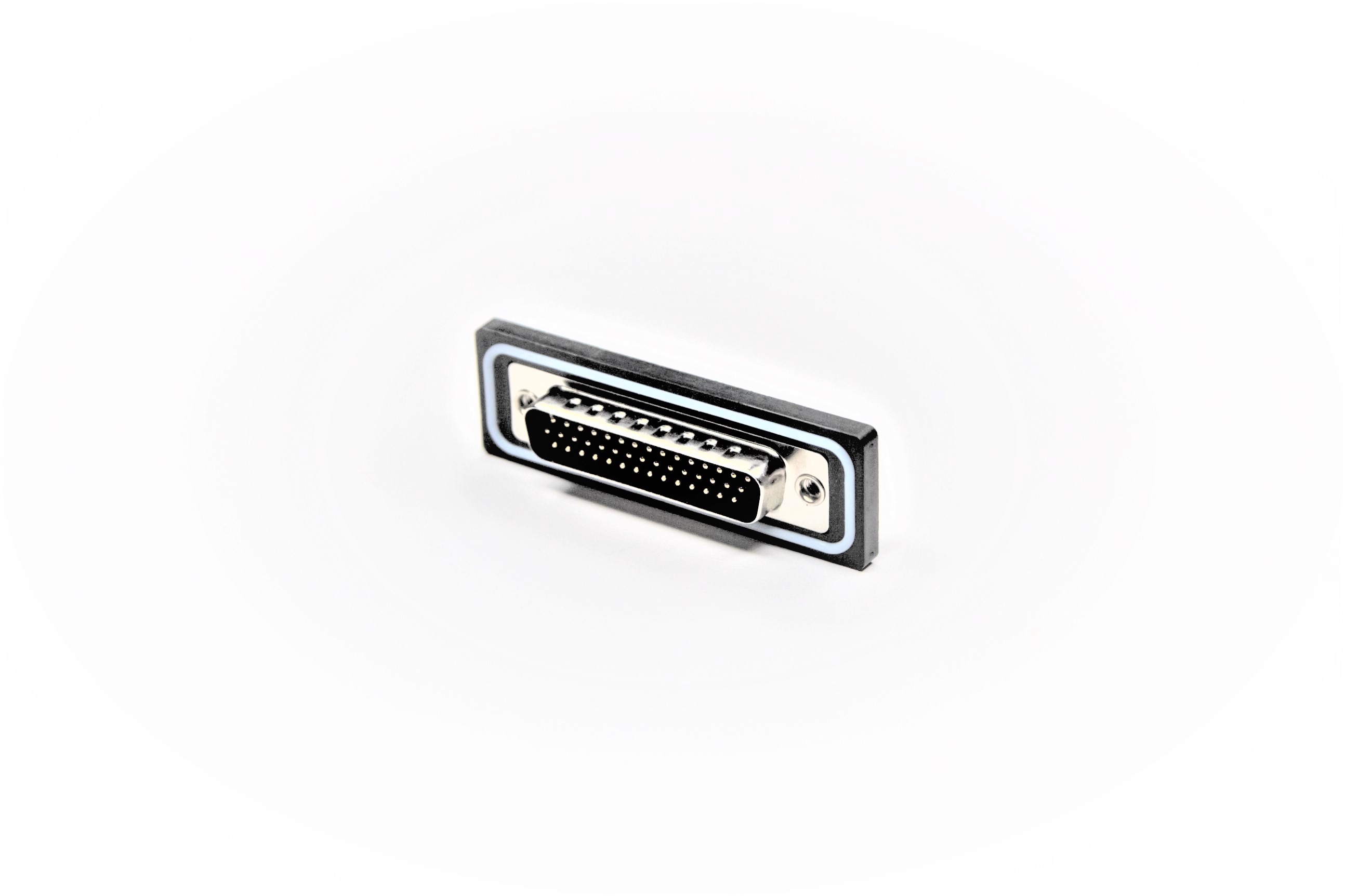

| High-Density | Short-body or high-density pin arrangement | Space-saving, suitable for precision equipment |
Technical Features
-
Analog Signal Transmission: Supports RGB video signals, ideal for traditional display devices
-
Durable Shell Design: Metal shielding enhances anti-interference capability
-
Multiple Pin Configurations: Available in 9, 15, 25 pins to meet diverse requirements
-
Flexible Mounting Options: DIP, SMT, right-angle, and vertical packages
-
High Reliability: Designed for repeated insertion, suitable for long-term use
Application Scenarios
-
Computers & Display Equipment: Monitors, projectors, graphics cards
-
Industrial Control: PLCs, machinery communication interfaces
-
Peripheral Devices: Printers, legacy communication equipment
-
Special Applications: High-density versions for space-constrained industrial or military-grade devices
